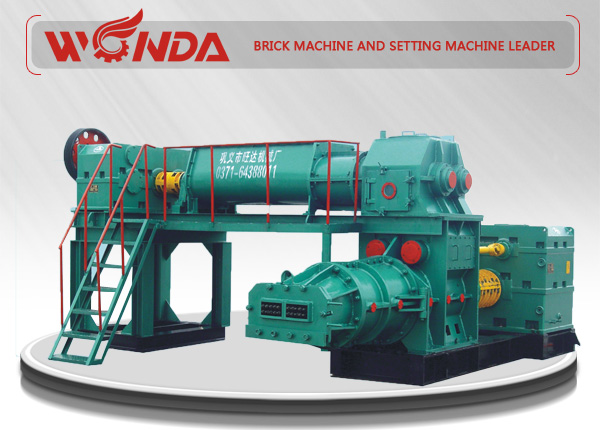

Brick Making Machine JZK70/60-4.0

brick-making-machine

 Description of Brick Making Machine JZK70/60-4.0:

The brick making machine JZK70/60-4.0 is a new brick machine made by Wangda, which is actually a double-stage vacuum brick extruding machine. The performance of the reducer on this brick making machine is highly improved by absorbing advanced technology aboard. The moisture is 16%-18% so the bricks are easy to sintering.

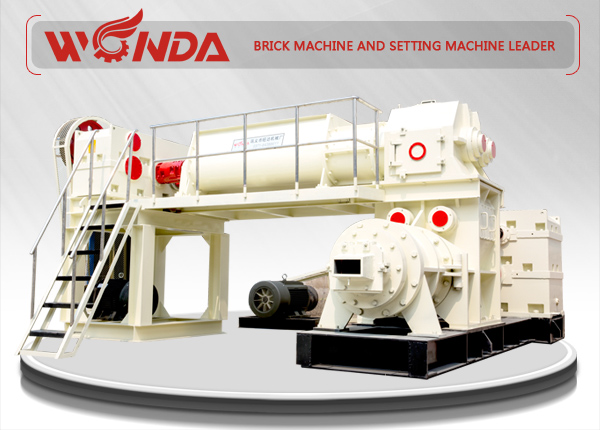

This brick making machine has a wide range of raw material like coal gangue, fly ash, shale, clay, etc. And it is an ideal brick making machine for the production of hollow bricks, solid bricks made from shale, coal gangue and coal ash, etc. The picture below shows the latest brick machine made by Wangda.

brick-machine-60

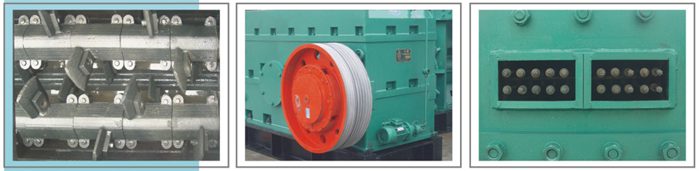

 Features of Brick Making Machine JZK70/60-4.0:

Main frames are made of high-quality steel
 Low cost, reliable performance, rational structure,
 Durable, strong adaptability, easy to operate,
 Low energy consumption, high capacity,
 Long service life and easy to maintain, etc.


 brick-machine

  Technical Parameters:

Type Production Capacity
(pcs/h)
Moisture
Content
Reamer
Diameter
(mm)
Allowable
Pressure
(Mpa)
Vacuum
Degree
(Mpa)
Motor Power
(kw)
JZK70/60-4.0 18000-22000 16-18% 700-600 4.0 <-0.092 Upper: Y6-75
Lower: Y6-250
JZK60/60-4.0 16000-22000 16-18% 600 4.0 <-0.092 Upper: Y6-75
Lower: Y6-250

Should this brick making machine or any other products be of interest to you, please do not hesitate  to contact us or complete the form below, and we will response to you as soon as possible.
