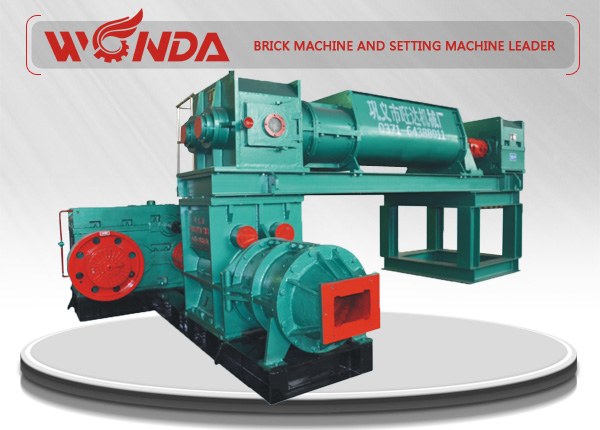

Brick Making Machine JZK55/55-4.0

brick-making-machine

 Product Description:

The brick making machine is a double-stage vacuum extrude designed and manufactured by Wangda Machinery with domestic and international advanced technics and experience. It is mainly used in the raw material like coal gangue, coal ash, shale, clay and so on.
This brick making machine is an ideal equipments for the production of various hollow bricks, shale, coal gangue and coal ash bricks.

 What Make Wangda Brick Machine Different?

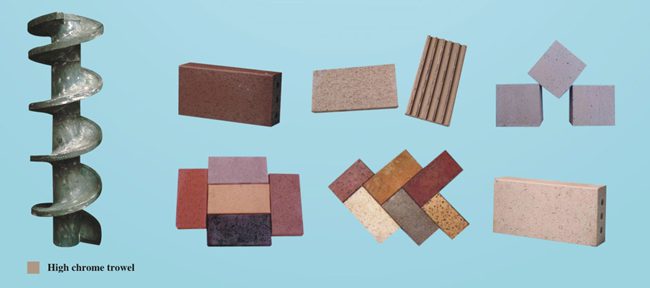

The auger is made of high chromium and tempered by quenching with the service life is capable of 800-1000 million standard bricks production, which is 8-10 times longer than sprayed surfacing auger;
 Whole cast and quenching of extrusion cylinder head and vacuum chamber, excellent toughness, not easily deformed, long service life;
 Vacuum chamber is designed to funnel-shape, which is able to emputy the air more quickly than the square chamber;
 The whole rack weld and plane processing in planer to make the product better concentricity;
 The spindle is processed by quenching, tempering and pressure testing to enhance stiffness and toughness;
 Bearings is made by Luoyang Bearing Group;
 Tunnel kiln: 450kw; Annular kiln: 500kw. Area: 25 mu. OEMs ground: 50m/*150m.

bricks


 Technical Parameters: ::

Type           Production
Capacity(m3/h)
Moisture
Content
Reamer
Diameter
(mm)
Spindle
Speed
(r/min)
Motor
Power
(kw)
Decelerator
JZK55/55-4.0                     16000-20000 16-20% 550 29.7-21.5 Upper:
Y250M-6-75
Upper:
ZSQ-RH225-20
With Pneumatic Clutch
Lower:
Y315S-6-185
Lower:
ZSQ-RH355-20
With Pneumatic Clutch

Should this brick making machine or any other products be of interest to you, please do not hesitate  to contact us or complete the form below, and we will response to you as soon as possible.
