A Daily Output of 0.1-0.2 Million Clay Brick Production Line

clay-brick-machine

Description of Clay Brick Production Line

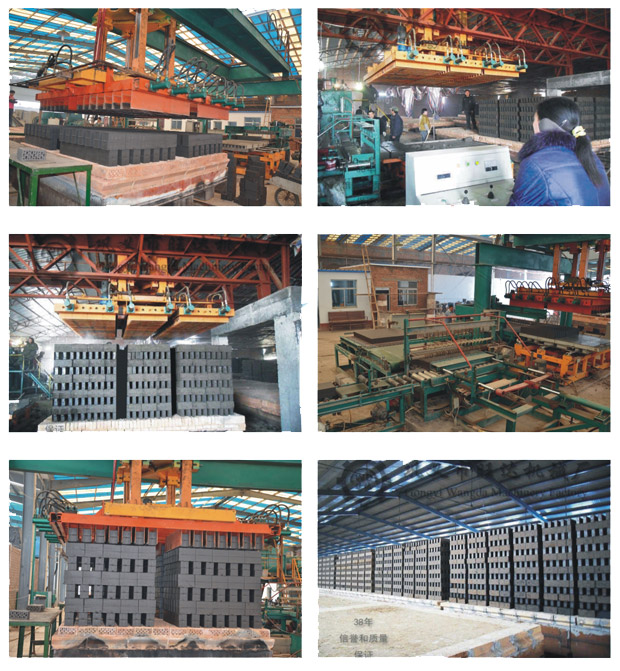

The core part of clay brick production line is the vacuum brick making machine which can make two kinds bricks, solid clay brick and perforated brick by using different mold. Without drying, the clay bricks are grab by the robot hand automatically onto the tunnel kiln car, and enter into the tunnel kiln for firing and then shipped by professional kiln car out of the kiln, for stacking for sell.

clay-brick-machine-jzk50/50  clay-brick-production

Clay brick production flow: feed raw material--conveyor--roller machine--conveyor--biaxial mixer--conveyor--vacuum brick extruder get mud strips--automatic cutting machine cut strips into bricks--conveyor--onto the kiln car--kiln. The whole clay brick production line is fully automatic(auto mechanical clutch, brick cutting machine, kiln cars, tractors.) By replacing the mold(also called mud mouth) to get Porous bricks.

This Daily Output of 0.1-0.2 Million Clay Brick Production Line need 2 models brick making machines, JZK50/45 and JZK50/50. It is a double stage vacuum brick extruding machine with wear-resistant metalization technology, which is an efficient brick making machine for clay brick manufacturing unit.

clay-bricks


Products

Specification QTY Note
Feeder 4000 2 Without Motor
2 set 6-pole 7.5KW
Roller Crusher 800*1000 1 Without Motor
1 set 4-pole 30KW
1 set 4-pole 22KW
Double Shaft Mixer 4000 1 Without Motor
1 set 4-pole 55KW
Brick Making Machine 50/45 1 Without Motor
1 set 6-pole 132KW
Vacuum Pump: 1 set 4-pole 15KW
50/50 1 Without Motor
Upper: 1 set 4-pole 55KW
Lower: 1 set 6-pole 160KW
Vacuum Pump: 1 set 4-pole 15KW
Brick Setting Machine   1 Include strip cutter, brick slitter, transition bed,
brick separator, lifter, fixtures, pumping stations
and operating cabinet.
Brick Setting Machine Walking Frame, Column   1
One-Way Ferry Car   1 With Motor
Ferry Pusher 80T 2 With Motor
Rail Car   6 With Motor, Steel Wire Rope
Belt Conveyor   5 With Motor, Conveyor
Coal Pulverizer+Belt   1 With Motor

 clay-brick-production

Should this clay brick production line be of interest to you, please do not hesitate  to contact us by completing the form below, and we will response to you as soon as possible.
