Brick Making Machine JZK50/45-3.0

brick-machine

 Application of Brick Machine JZK50/45-3.0

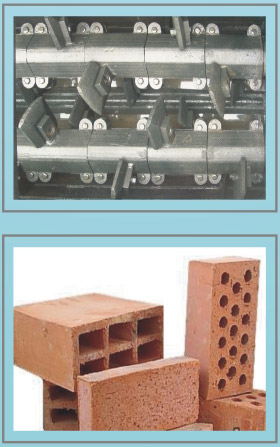

Wangda-brickmachineThe brick machine JZK50/45-3.0 is used to process raw material like clay, shale, coal gangue, fly ash, slag, mountain mud, silt, etc. into solid bricks, hollow bricks and perforated bricks with strong mixing, vacuum processing, and powerful extrusion.

 Technical Features

The trowel uses wear-resistant metalization technology;
Mixer shaft in above stage, main shaft of trowel and the body of machine are enhanced by aging, quenching and tempering;
 Reducer gear has hard tooth surfaces;
 Clutch adopts screw press technology, which improves the service life of our brick machines.
 With reasonable design, compact structure, this brick machine can operate stably without having to install anchor bolt and greatly reduce the power consumption caused by vibration.
 This brick machine is able to make the wastes profitable as well as saving energy with obvious economic and social benefits.



 Technical Parameters

Type Production
Capacity
(m3/h)
Moisture
Content
Reamer
Diameter
(mm)
Spindle
Speed
(r/min)
Motor
Power
(kw)
Decelerator
JZK50/45-3.0 10000-14000 18-22% 400 30-36 Y280S-4-110KW 1. Dedicated Reducer
2. ZQ85 reduction
gear is used in the lower stage transmission.
3. With Pneumatic Clutch

Should this brick machine or any other products be of interest to you, please do not hesitate  to contact us or complete the form below, and we will response to you as soon as possible.
