Automatic Brick Setting Machine

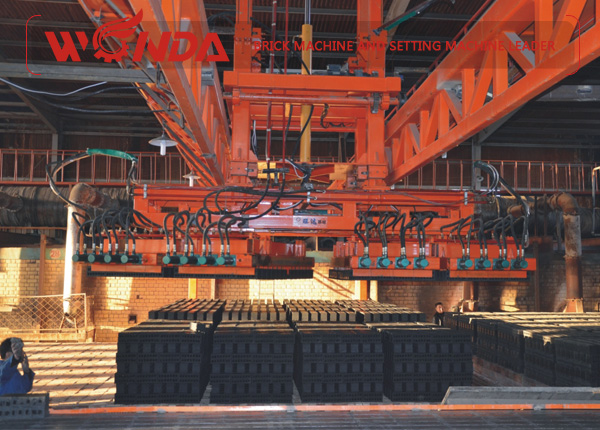

automatic-brick-setting-machine

 Description of Automatic Brick Setting Machine

The full-automatic brick setting machine (ZPM) is mainly used for brick laying and stacking for the first and second firing in tunnel kiln. It has the features of hydraulic lift, electrical control and automatic brick setting.

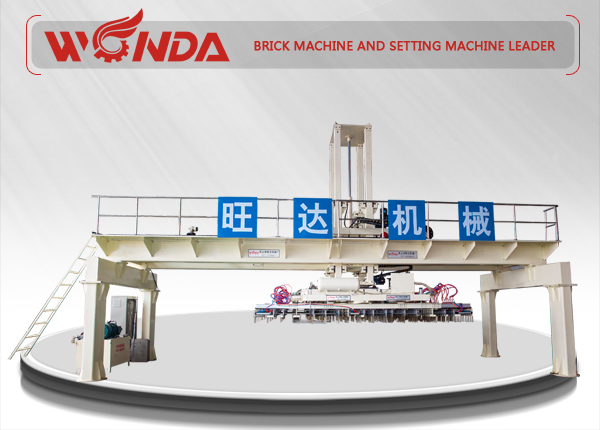

brick-setting-machine

The full-automatic brick setting machine is composed of walking car, chuck, brick separation platform, lifting guide pillar, rail, hydraulic system and electrical system,etc. It is able to complete the whole laying/stacking process automatically, and all the moves are operated by electrical control. Workers can simply operate this brick setting machine.

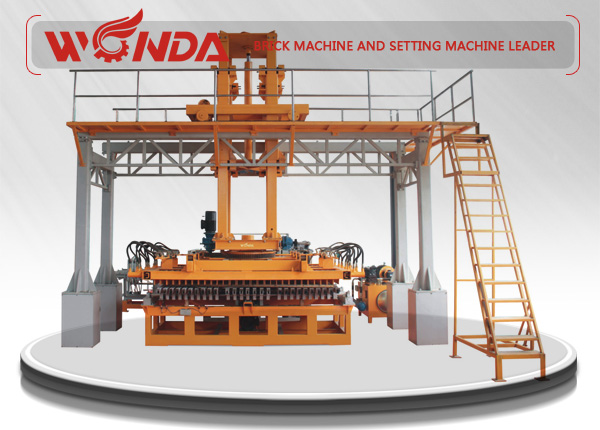

new-brick-setting-machine

 Automatic Brick Setting Machine Helps a lot in Brickyard

It is a big problem to lay/stack bricks in brick factory. To sovle this problem, automatic brick setting machine came into being. With the emergence of auto brick setting brick, the labor expense and brick setting costs has been reduced greatly. An automatic brick setting machine is ten times of a labor in working capacity. In adition, it is able to work 24 hours a day since it is a robot, feels no tired, pays no wages. With the money saved a year, you can buy a luxury car. So for brickyards, automatic brick setting machine is one of the essential equipment.

brick-setting-machine

 Operation Flow of Brick Setting Machine:

 The extruded strips are cut into separated brick strips by brick slitter;
 The stripes are pushed through the cutting wires to the transitional bed ;
 When the transitional bed is fully occupied, the bricks are pushed to the brick board;
 The Lift Cylinder controls the chunk clamps down to reach the bricks, then the lift cylinder lifts the clamped bricks to a certain height.
 Chunk puts down the bricks on the tunnel kiln car.

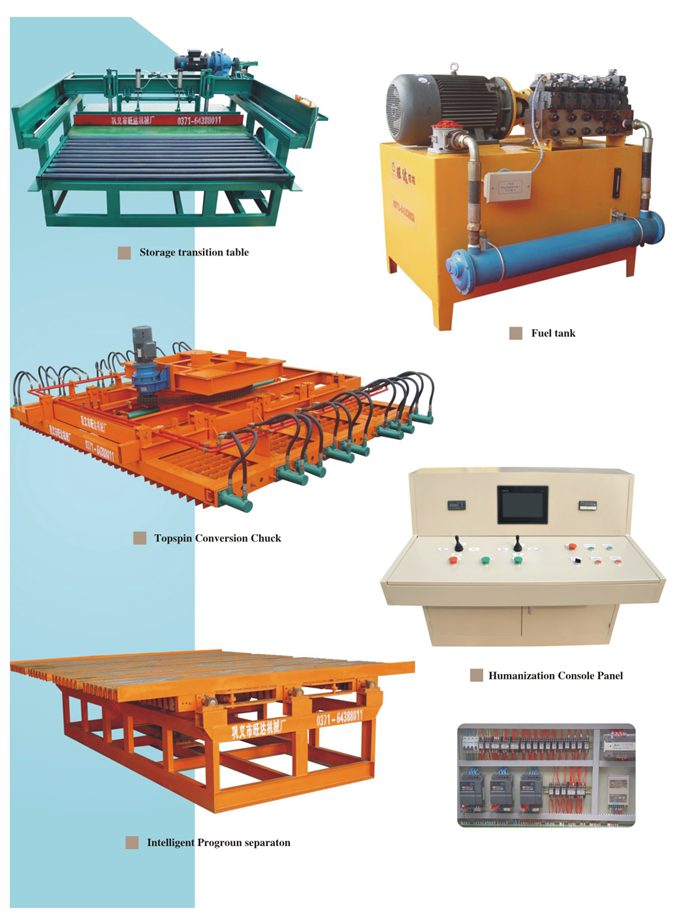

brick-setting-machine-parts

 Technical Data:

Production Capacity(Pcs/Year) Installed Capacity
(Kw)
Weight
(kg)
30,000,000 26.6 18000
60,000,000 26.6 19600
120,000,000 26.6 19600

Should this brick setting machine or any other products be of interest to you, please do not hesitate  to contact us or complete the form below, and we will response to you as soon as possible.
