Brick Making Machine JZK50/50-3.5

brick-making-machine-JZK50

 Technical Features of Brick Making Machine JZK50/50-3.5

The brick machine JZK50/50-3.5 is a double-stage brick making machine. It adopts wear-resistant metalization technology for the trowel and mixer shaft of upper stage. The main shaft of trowel and the body of machine are processed by aging, quenching and tempering. Gears of reducer have hard tooth surfaces and the clutch adopts screw press technology, which improves the service life of our brick machine. At the same time, with reasonable design, compact structure, this machine can operate stably without having to install anchor bolt and greatly reduce the power consumption in the operating process caused by shaving.

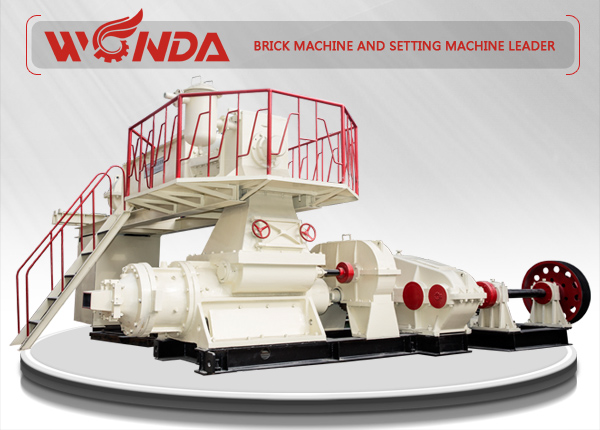

The image blow shows the latest brick machine made by Wangda.

brick-machine-50



 Features of Brick Making Machine JZK50/50-3.5

All-steel welded structure;
 Floating spindle;
 High-chromium alloy wear-resistant lining;
 Large extrusion force;
 High vacuum degree;
 The personalized reamer is designed according to the nature of the raw materials.

 Technical Parameters

Type Production
Content
(m3/h)
Moisture
Content
Reamer
Diameter
(mm)
Spindle
Speed
(r/min)
Motor
Power
(kw)
Decelerator
JZK50/50-3.5 12000-16000 18-20% 500 28-34 Upeer:
Y250M-4-55
Upper:
YZQ75-15IIZ
With Pneumatic Clutch
Lower:
Y315S-6-160
Lower:
ZQ100-20IVZ
With Pneumatic Clutch
JZK45/45-3.5 10000-13000 18-20% 450 36-40 Upper:
Y225M-4-45KW
Upper:
YZQ65-15IZ
With Pneumatic Clutch

Should this brick machine or any other products be of interest to you, please do not hesitate  to contact us or complete the form below, and we will response to you as soon as possible.
