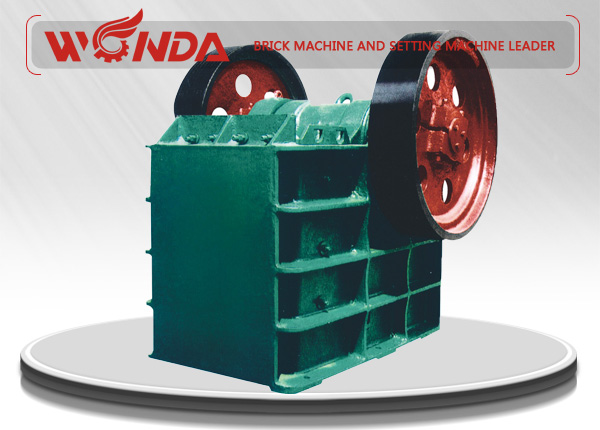

Jaw Crusher

jaw-crusher

 Features of Jaw Crusher:

Simple structure;
 Durable;
 Even breaking particle size;
 Low operation costs;
 Simple maintenance;
 Long service life.

 Application:

The jaw crusher produce by Wangda Machinery has wide application fields and you will easily find our jaw crusher in mining, metallurgy, building, road construction, etc. It is used to crush materials with compressive strength below 250Mpa, and it can break the different sized material into uniform particle sized materials to the next process in the breaking making line.

 Technical Parameters:

Type Feeding
Size
(mm)
Discharge
Size
(mm)
Capacity
(t/h)
Rotate
Speed
(r/min)
Motor
Power
(kw)
Dimension
(L×W×H)
Weight
(kg)
PE150×250 125 10-35 2-5 300 5.5 900×750×850 1000
PE200×300 180 15-50 2-8 300 7.5 910×750×900 1500
PE200×350 180 15-70 6-12 300 7.5 1100×970×1050 1700
PE250×400 210 20-80 5-22 300 15 1450×1315×1296 2800
PE400×600 350 40-90 16-60 260 30 1700×1732×1653 6800
PE500×750 425 50-120 40-100 260 37 1930×2062×1853 12500
PE600×900 480 80-180 60-200 250 55 2450×2200×2400 17600
PE750×1060 630 80-180 90-200 225 110 2531×2370×2783 31500
PE900×1200 750 95-200 120-230 200 132 5000×2900×3500 50500
PE1000×1200 850 120-260 280-250 200 200 5300×2900×3500 52000
PE1200×1500 1000 150-350 550-950 200 200 6200×3800×4000 98000
